Stiltz Duo Home Lift
Stiltz Duo Home Lift

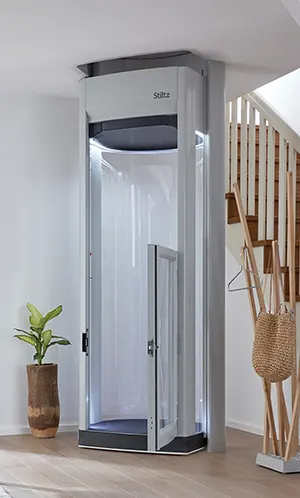

The intelligent technology and extensive safety features within a Stiltz Duo+ Home Lift makes owning this compact home lift a delight. Suitable for one or two people, the Duo+ has clear sides and a soft, warm grey finish meaning it will compliment both classic and contemporary interiors.
A Stiltz Duo+ Home Lift can typically be installed in a day, once any building work has been completed. You will be delighted with how easy it is to use. Like all our models, a Stiltz is freestanding and does not need a load bearing wall for support. This means no loud vibrations, just smooth and quiet travel from floor to floor.
The Duo Specifications
- Standard Finishes Duo+: pale warm grey construction with clear polycarbonate lift car body. Duo Classic: neutral cream exterior and door with a matching beige interior lining colour.

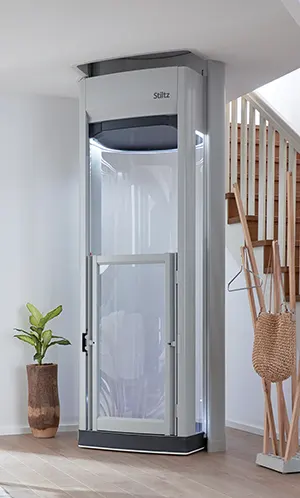

- Half Height Door The door is interlocked and is made to match the finish of the lift.
- 2 X Remote Controls Call and send the lift remotely and also use it to move heavy or awkward items between floors.
- One Year Warranty All Stiltz Lifts carry a compehensive 12 months parts and labour warranty which includes 1st year’s service. Maintenance packages available at extra cost.
- Internal LED Downlights These are programmed to turn on once the user has entered the lift and remain on for the entire journey.
- Battery Back Up System If there is a power cut while using the lift it will descend to the lower level of the home and wait until the power comes back on.
- Full Height Light Curtain Light Curtain is fitted with a half height door.
- Interior Telephone In the very unlikely event that the lift stops while you are travelling in it, help is just a phone call away.
- Fold Down Seat This is a popular option selected by customers for the short trip between floors.
- Interior Grab Rail Offers increased security for the occupants of the lift.
- Full Height Door An interlocked door that replaces the half-height door and light curtain.
- Bespoke Colours & Finishes Customise your Stiltz lift by choosing different colour lift car, rails and interior lining (Classic range only).
- Uninterruptible Power Supply This system will allow for numerous trips both up and down whilst the main power to the lift is out.
- Full Height Light Curtain A full-height motion sensor is situated at the entrance of our lifts (unless a full height door is chosen). If this barrier is crossed the lift will immediately stop.

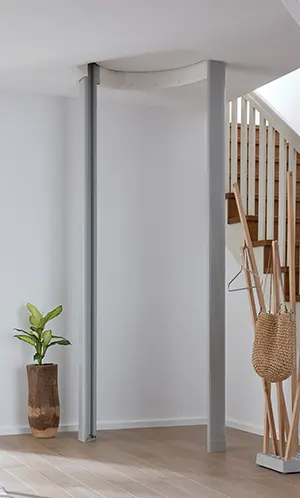

- Safety Lid Plug This crucial feature plugs the aperture in the floor when the lift is in the downstairs position. It is strong enough to stand on and you can place your original flooring on top to blend in.
- Key Switch Operation This feature allows the owner to isolate the lift if the need arises. This is commonly used when going away on holiday or when the grandchildren are around.
- Top & Bottom Safety Pans Using our obstruction sensing covers, a Stiltz Lift can detect objects above or below the lift, causing it to immediately stop.
- Hold-To-Run Controls Operating a Stiltz Lift requires constant pressure to the controls. This allows the user to ‘drive’ the lift and feel in total control.
- Weight Limit Sensors Our Duo Lifts are limited to 170Kg, 27 stone/ 375lbs. The lift detects anything exceeding this limit and will not travel.
- Out Of Balance Sensors Sensors will detect if the lift is ever out of balance and prevent the unit from travelling.
- Fall Arrest Mechanism This patented system prevents the car from falling in the unlikely event of the steel ropes going slack.
- Emergency Stop Button This button is front and centre for the user in the event of an emergency.
- Over Speed Detection The lift uses an optical sensor to detect the speed of travel. If this increases beyond a certain speed, the sensor will stop the lift from travelling in that direction.
Stiltz lifts are inherently simple in design and concept but if you wish to dig a little deeper, you can download all the information you need below.
|Drive||Roped drum, braked gear motor drive|
|Power Supply||220 – 240v AC | 5 Amps|
|Maximum Load||170kg | 27st | 375lb (2 persons standing or 1 person sitting)|
|Maximum Travel||3.6 Metres|
|Entrance Security||Full height light curtain / motion sensor – optional full height door|
|Maximum Speed||15cm / Second|
|Warranty||12 months parts and labour warranty|
|Compliance||European Machinery Directive 2006 / 42 / EC & Australian Standard 1735 Part 15|
|Rope Diameter||6mm Galvanized steel rope|
|Additional Sensors||Out-of-balance & overload, overspeed detection and light curtain|
|Lighting Type||2 x 3w LED downlights|
|Landing Call Stations||2 Wireless remote control units – call / send facility (3 x standard aaa batteries in each)|
|Installation||Typical installation takes two days|
Stiltz DUO+ Footprint
The very compact Stiltz Duo+ Home Lift is only 1046mm x 765mm, a footprint of less than 1sqm. It will fit into most small spaces within the home.
